DO00N

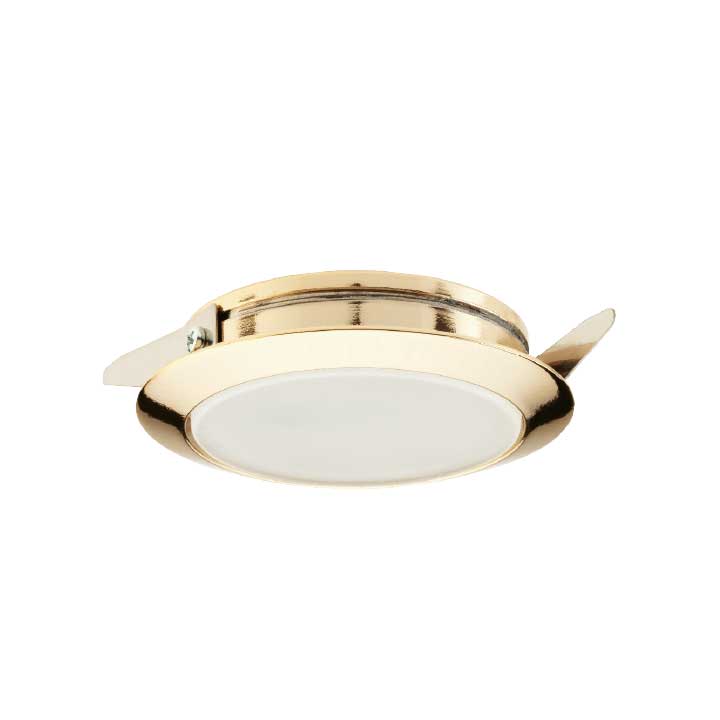

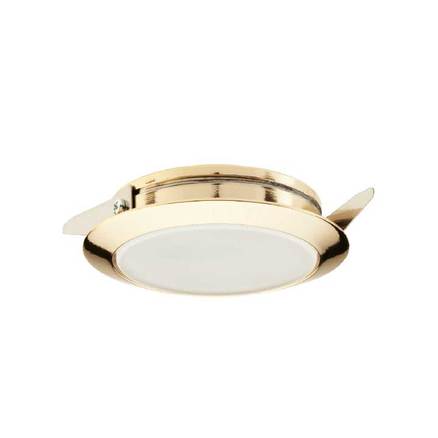

Fixed slim recessed device for indoor. Aluminum body, waxed glass for homogeneous emission of light. Metal mounting spring, mountable on drywall on the ceiling and on the wall. Available in different finishes and color tones.
Downloads:
| Code | Finitura | Alimentatore Input | Numero Led_ led/m | Colore Luce | Gradi Lente | Lumen Max - Lumen/m | Potenza Max |
|---|---|---|---|---|---|---|---|
| DO00N1D5E | Cromato | 24Vdc |
 Warm light
|
120° | 3W | ||
| DO00N3W1B5A | Bianco | 24Vdc | 3 |
Warm light
|
45° | 3W | |
| DO00N3W1B5D | Nichel Spazzolato | 24Vdc | 3 |
Warm light
|
45° | 3W | |
| DO00N3W1B5E | Cromato | 24Vdc | 3 |
Warm light
|
45° | 3W | |
| DO00N3W1B5F | Ottone | 24Vdc | 3 |
Warm light
|
45° | 3W | |
| DO00N3W1D5A | Bianco | 24Vdc | 3 |
Warm light
|
120° | 3W | |
| DO00N3W1D5D | Nichel Spazzolato | 24Vdc | 3 |
Warm light
|
120° | 3W | |
| DO00N3W1D5E | Cromato | 24Vdc | 3 |
Warm light
|
120° | 3W | |
| DO00N3W1D5F | Ottone | 24Vdc | 3 |
Warm light
|
120° | 3W | |
| DO00N3W1E5A | Bianco | 24Vdc | 3 |
Warm light
|
10° | 3W | |
| DO00N3W1E5D | Nichel Spazzolato | 24Vdc | 3 |
Warm light
|
10° | 3W | |
| DO00N3W1E5E | Cromato | 24Vdc | 3 |
Warm light
|
10° | 3W | |
| DO00N3W1E5F | Ottone | 24Vdc | 3 |
Warm light
|
10° | 3W | |
| DO00N3W1T5A | Bianco | 24Vdc | 3 |
Warm light
|
25° | 3W | |
| DO00N3W1T5D | Nichel Spazzolato | 24Vdc | 3 |
Warm light
|
25° | 3W | |
| DO00N3W1T5E | Cromato | 24Vdc | 3 |
Warm light
|
25° | 3W | |
| DO00N3W1T5F | Ottone | 24Vdc | 3 |
Warm light
|
25° | 3W | |
| DO00N3W2B5A | Bianco | 24Vdc | 3 |
 Cold light
|
45° | 3W | |
| DO00N3W2B5D | Nichel Spazzolato | 24Vdc | 3 |
Cold light
|
45° | 3W | |
| DO00N3W2B5E | Cromato | 24Vdc | 3 |
Cold light
|
45° | 3W | |
| DO00N3W2B5F | Ottone | 24Vdc | 3 |
Cold light
|
45° | 3W | |
| DO00N3W2D5A | Bianco | 24Vdc | 3 |
Cold light
|
120° | 3W | |
| DO00N3W2D5D | Nichel Spazzolato | 24Vdc | 3 |
Cold light
|
120° | 3W | |
| DO00N3W2D5E | Cromato | 24Vdc | 3 |
Cold light
|
120° | 3W | |
| DO00N3W2D5F | Ottone | 24Vdc | 3 |
Cold light
|
120° | 3W | |
| DO00N3W2E5A | Bianco | 24Vdc | 3 |
Cold light
|
10° | 3W | |
| DO00N3W2E5D | Nichel Spazzolato | 24Vdc | 3 |
Cold light
|
10° | 3W | |
| DO00N3W2E5E | Cromato | 24Vdc | 3 |
Cold light
|
10° | 3W | |
| DO00N3W2E5F | Ottone | 24Vdc | 3 |
Cold light
|
10° | 3W | |
| DO00N3W2T5A | Bianco | 24Vdc | 3 |
Cold light
|
25° | 3W | |
| DO00N3W2T5D | Nichel Spazzolato | 24Vdc | 3 |
Cold light
|
25° | 3W | |
| DO00N3W2T5E | Cromato | 24Vdc | 3 |
Cold light
|
25° | 3W | |
| DO00N3W2T5F | Ottone | 24Vdc | 3 |
Cold light
|
25° | 3W | |
| DO00N3W3B5A | Bianco | 24Vdc | 3 |
 Blue
|
45° | 3W | |
| DO00N3W3B5D | Nichel Spazzolato | 24Vdc | 3 |
Blue
|
45° | 3W | |
| DO00N3W3B5E | Cromato | 24Vdc | 3 |
Blue
|
45° | 3W | |
| DO00N3W3B5F | Ottone | 24Vdc | 3 |
Blue
|
45° | 3W | |
| DO00N3W3D5A | Bianco | 24Vdc | 3 |
Blue
|
120° | 3W | |
| DO00N3W3D5D | Nichel Spazzolato | 24Vdc | 3 |
Blue
|
120° | 3W | |
| DO00N3W3D5E | Cromato | 24Vdc | 3 |
Blue
|
120° | 3W | |
| DO00N3W3D5F | Ottone | 24Vdc | 3 |
Blue
|
120° | 3W | |
| DO00N3W3E5A | Bianco | 24Vdc | 3 |
Blue
|
10° | 3W | |
| DO00N3W3E5D | Nichel Spazzolato | 24Vdc | 3 |
Blue
|
10° | 3W | |
| DO00N3W3E5E | Cromato | 24Vdc | 3 |
Blue
|
10° | 3W | |
| DO00N3W3E5F | Ottone | 24Vdc | 3 |
Blue
|
10° | 3W | |
| DO00N3W3T5A | Bianco | 24Vdc | 3 |
Blue
|
25° | 3W | |
| DO00N3W3T5D | Nichel Spazzolato | 24Vdc | 3 |
Blue
|
25° | 3W | |
| DO00N3W3T5E | Cromato | 24Vdc | 3 |
Blue
|
25° | 3W | |
| DO00N3W3T5F | Ottone | 24Vdc | 3 |
Blue
|
25° | 3W | |
| DO00N3W7D1A | Bianco | 350mA | 3 |
 Equipped with RGB LED
|
120° | 3W | |
| DO00N3W7D1D | Nichel Spazzolato | 350mA | 3 |
Equipped with RGB LED
|
120° | 3W | |
| DO00N3W7D1E | Cromato | 350mA | 3 |
Equipped with RGB LED
|
120° | 3W | |
| DO00N3W7D1F | Ottone | 350mA | 3 |
Equipped with RGB LED
|
120° | 3W | |
| DO00N3W9B5A | Bianco | 24Vdc | 3 |
 Natural light
|
45° | 3W | |
| DO00N3W9B5D | Nichel Spazzolato | 24Vdc | 3 |
Natural light
|
45° | 3W | |
| DO00N3W9B5E | Cromato | 24Vdc | 3 |
Natural light
|
45° | 3W | |
| DO00N3W9B5F | Ottone | 24Vdc | 3 |
Natural light
|
45° | 3W | |
| DO00N3W9D5A | Bianco | 24Vdc | 3 |
Natural light
|
120° | 3W | |
| DO00N3W9D5D | Nichel Spazzolato | 24Vdc | 3 |
Natural light
|
120° | 3W | |
| DO00N3W9D5E | Cromato | 24Vdc | 3 |
Natural light
|
120° | 3W | |
| DO00N3W9D5F | Ottone | 24Vdc | 3 |
Natural light
|
120° | 3W | |
| DO00N3W9E5A | Bianco | 24Vdc | 3 |
Natural light
|
10° | 3W | |
| DO00N3W9E5D | Nichel Spazzolato | 24Vdc | 3 |
Natural light
|
10° | 3W | |
| DO00N3W9E5E | Cromato | 24Vdc | 3 |
Natural light
|
10° | 3W | |
| DO00N3W9E5F | Ottone | 24Vdc | 3 |
Natural light
|
10° | 3W | |
| DO00N3W9T5A | Bianco | 24Vdc | 3 |
Natural light
|
25° | 3W | |
| DO00N3W9T5D | Nichel Spazzolato | 24Vdc | 3 |
Natural light
|
25° | 3W | |
| DO00N3W9T5E | Cromato | 24Vdc | 3 |
Natural light
|
25° | 3W | |
| DO00N3W9T5F | Ottone | 24Vdc | 3 |
Natural light
|
25° | 3W | |
| DO00NCUSTOM | Cromato | 3 | 3W |
