SC20

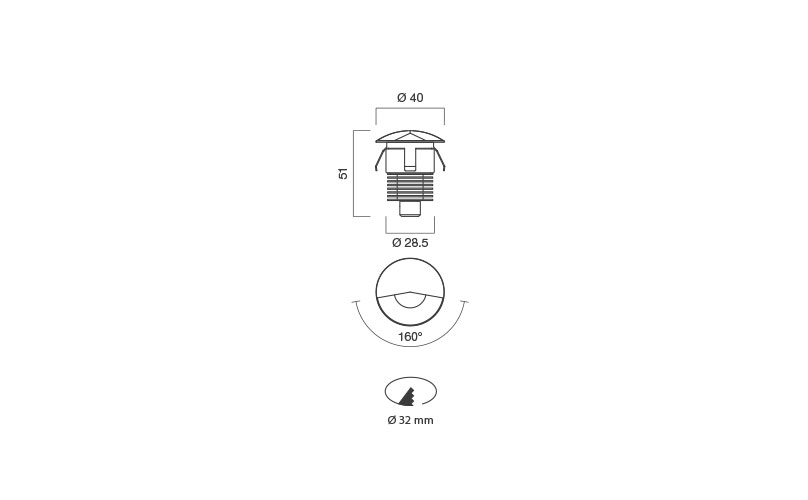

Recessed device for indoor and outdoor. Black anodized aluminum body, round aluminum front in different finishes. Plastic lens, asymmetrical emission of light. Available in different white color of temperature or in RGB version. Mounting clip for fixing on plasterboard. By request, plastic recessed box is available. Compact size, can be installed on stairs, corridors and as step signal on footpaths.



Downloads:


Code Finitura Alimentatore Input Numero Led_ led/m Colore Luce Gradi Lente Lumen Max - Lumen/m Potenza Max
SC203W1C2D Nichel Spazzolato 650mA Warm light 90° 3W
SC203W1C2E Cromato 650mA Warm light 90° 3W
SC203W1C2P 650mA Warm light 90° 3W
SC203W2C2D Nichel Spazzolato 650mA Cold light 90° 3W
SC203W2C2E Cromato 650mA Cold light 90° 3W
SC203W2C2P 650mA Cold light 90° 3W
SC203W3C2D Nichel Spazzolato 650mA Blue 90° 3W
SC203W3C2E Cromato 650mA Blue 90° 3W
SC203W3C2P 650mA Blue 90° 3W
SC203W7C1D Nichel Spazzolato 350mA Equipped with RGB LED 90° 3W
SC203W7C1E Cromato 350mA Equipped with RGB LED 90° 3W
SC203W7C1P 350mA Equipped with RGB LED 90° 3W
SC203W9C2D Nichel Spazzolato 650mA Natural light 90° 3W
SC203W9C2E Cromato 650mA Natural light 90° 3W
SC203W9C2P 650mA Natural light 90° 3W
