PH12R

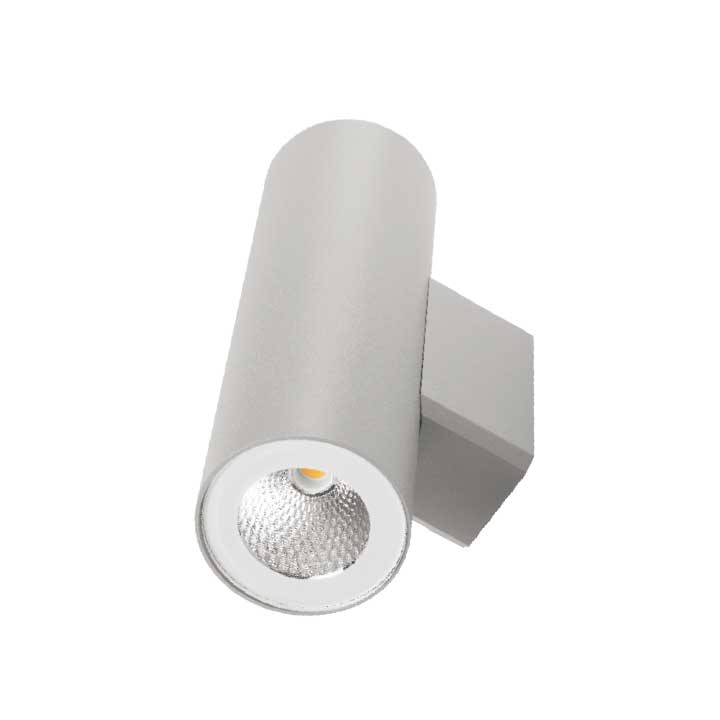

Bidirectional wall mounting hi power device for outdoor. Round body in extruded aluminum with frontal glass. Wall fixing with special bracket. The innovative assembling system, with the use of high fixing glue, eliminates screws and makes the Phoenix serie clean, minimal and elegant. Available with 2x20W power COB LEDs in different white color temperature and in various finishes to match the context. Ideal for wall lighting.
Downloads:
| Code | Finitura | Alimentatore Input | Numero Led_ led/m | Colore Luce | Gradi Lente | Lumen Max - Lumen/m | Potenza Max |
|---|---|---|---|---|---|---|---|
| PH12R20W1B6A | Bianco | 230Vac | 2 |
 Warm light
|
45° | 20W | |
| PH12R20W1B6B | Grigio RAL9006 | 230Vac | 2 |
Warm light
|
45° | 20W | |
| PH12R20W1B6M | Cor-Ten | 230Vac | 2 |
Warm light
|
45° | 20W | |
| PH12R20W1B6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Warm light
|
45° | 20W | |
| PH12R20W1D6A | Bianco | 230Vac | 2 |
Warm light
|
120° | 20W | |
| PH12R20W1D6B | Grigio RAL9006 | 230Vac | 2 |
Warm light
|
120° | 20W | |
| PH12R20W1D6M | Cor-Ten | 230Vac | 2 |
Warm light
|
120° | 20W | |
| PH12R20W1D6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Warm light
|
120° | 20W | |
| PH12R20W1F6A | Bianco | 230Vac | 2 |
Warm light
|
60° | 20W | |
| PH12R20W1F6B | Grigio RAL9006 | 230Vac | 2 |
Warm light
|
60° | 20W | |
| PH12R20W1F6M | Cor-Ten | 230Vac | 2 |
Warm light
|
60° | 20W | |
| PH12R20W1F6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Warm light
|
60° | 20W | |
| PH12R20W1T6A | Bianco | 230Vac | 2 |
Warm light
|
25° | 20W | |
| PH12R20W1T6B | Grigio RAL9006 | 230Vac | 2 |
Warm light
|
25° | 20W | |
| PH12R20W1T6M | Cor-Ten | 230Vac | 2 |
Warm light
|
25° | 20W | |
| PH12R20W1T6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Warm light
|
25° | 20W | |
| PH12R20W2B6A | Bianco | 230Vac | 2 |
 Cold light
|
45° | 20W | |
| PH12R20W2B6B | Grigio RAL9006 | 230Vac | 2 |
Cold light
|
45° | 20W | |
| PH12R20W2B6M | Cor-Ten | 230Vac | 2 |
Cold light
|
45° | 20W | |
| PH12R20W2B6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Cold light
|
45° | 20W | |
| PH12R20W2D6A | Bianco | 230Vac | 2 |
Cold light
|
120° | 20W | |
| PH12R20W2D6B | Grigio RAL9006 | 230Vac | 2 |
Cold light
|
120° | 20W | |
| PH12R20W2D6M | Cor-Ten | 230Vac | 2 |
Cold light
|
120° | 20W | |
| PH12R20W2D6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Cold light
|
120° | 20W | |
| PH12R20W2F6A | Bianco | 230Vac | 2 |
Cold light
|
60° | 20W | |
| PH12R20W2F6B | Grigio RAL9006 | 230Vac | 2 |
Cold light
|
60° | 20W | |
| PH12R20W2F6M | Cor-Ten | 230Vac | 2 |
Cold light
|
60° | 20W | |
| PH12R20W2F6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Cold light
|
60° | 20W | |
| PH12R20W2T6A | Bianco | 230Vac | 2 |
Cold light
|
25° | 20W | |
| PH12R20W2T6B | Grigio RAL9006 | 230Vac | 2 |
Cold light
|
25° | 20W | |
| PH12R20W2T6M | Cor-Ten | 230Vac | 2 |
Cold light
|
25° | 20W | |
| PH12R20W2T6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Cold light
|
25° | 20W | |
| PH12R20W9B6A | Bianco | 230Vac | 2 |
 Natural light
|
45° | 20W | |
| PH12R20W9B6B | Grigio RAL9006 | 230Vac | 2 |
Natural light
|
45° | 20W | |
| PH12R20W9B6M | Cor-Ten | 230Vac | 2 |
Natural light
|
45° | 20W | |
| PH12R20W9B6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Natural light
|
45° | 20W | |
| PH12R20W9D6A | Bianco | 230Vac | 2 |
Natural light
|
120° | 20W | |
| PH12R20W9D6B | Grigio RAL9006 | 230Vac | 2 |
Natural light
|
120° | 20W | |
| PH12R20W9D6M | Cor-Ten | 230Vac | 2 |
Natural light
|
120° | 20W | |
| PH12R20W9D6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Natural light
|
120° | 20W | |
| PH12R20W9F6A | Bianco | 230Vac | 2 |
Natural light
|
60° | 20W | |
| PH12R20W9F6B | Grigio RAL9006 | 230Vac | 2 |
Natural light
|
60° | 20W | |
| PH12R20W9F6M | Cor-Ten | 230Vac | 2 |
Natural light
|
60° | 20W | |
| PH12R20W9F6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Natural light
|
60° | 20W | |
| PH12R20W9T6A | Bianco | 230Vac | 2 |
Natural light
|
25° | 20W | |
| PH12R20W9T6B | Grigio RAL9006 | 230Vac | 2 |
Natural light
|
25° | 20W | |
| PH12R20W9T6M | Cor-Ten | 230Vac | 2 |
Natural light
|
25° | 20W | |
| PH12R20W9T6N | Grigio Scuro RAL7043 | 230Vac | 2 |
Natural light
|
25° | 20W | |
| PH12RCUSTOM | 230Vac | 2 | 40W |
