DR10

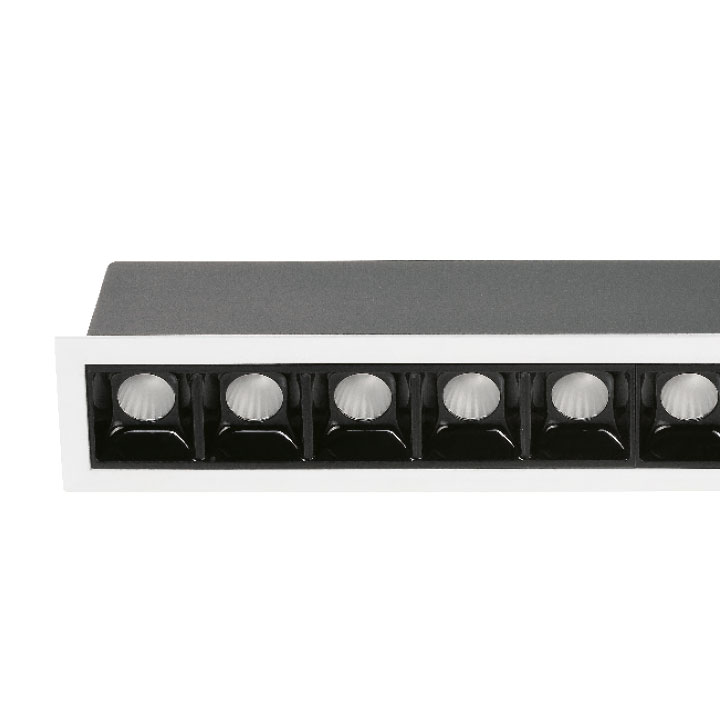

Indoor recessed LED bar. Complete and elegant line of products, in modern minimal style, possibility of combining different products of the same family to obtain uniformity of the lighting system, giving the right light tone to each segment of the environment where the product is placed. The particular shape of the black front reduces unwanted light reflections.



Downloads:


Code Finitura Alimentatore Input Numero Led_ led/m Colore Luce Gradi Lente Lumen Max - Lumen/m Potenza Max
DR102W1A6A Bianco 230Vac 10 Warm light 15° 20W
DR102W1B6A Bianco 230Vac 10 Warm light 45° 20W
DR102W1N6A Bianco 230Vac 10 Warm light 30° 20W
DR102W2A6A Bianco 230Vac 10 Cold light 15° 20W
DR102W2B6A Bianco 230Vac 10 Cold light 45° 20W
DR102W2N6A Bianco 230Vac 10 Cold light 30° 20W
DR102W9A6A Bianco 230Vac 10 Natural light 15° 20W
DR102W9B6A Bianco 230Vac 10 Natural light 45° 20W
DR102W9N6A Bianco 230Vac 10 Natural light 30° 20W
