DR05

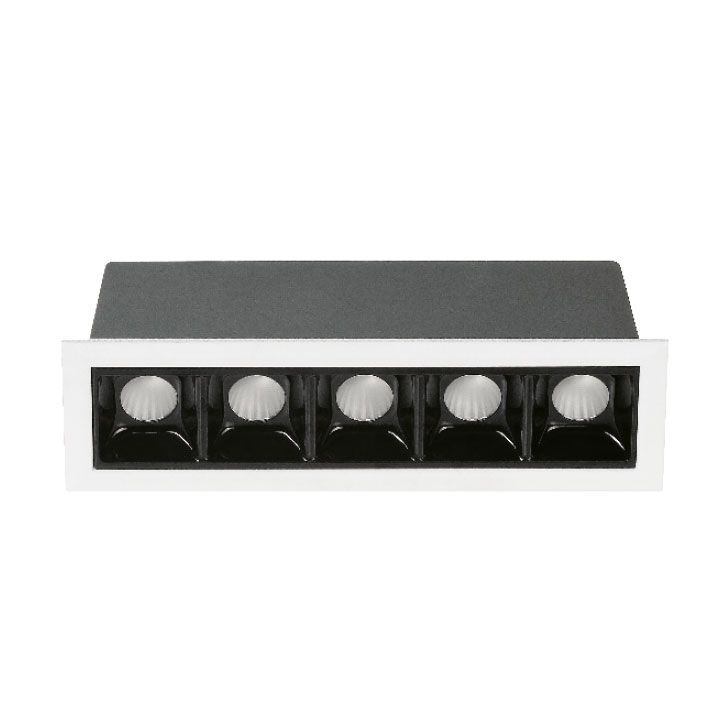

Indoor recessed LED bar. Complete and elegant line of products, in modern minimal style, possibility of combining different products of the same family to obtain uniformity of the lighting system, giving the right light tone to each segment of the environment where the product is placed. The particular shape of the black front reduces unwanted light reflections.



Downloads:


Code Finitura Alimentatore Input Numero Led_ led/m Colore Luce Gradi Lente Lumen Max - Lumen/m Potenza Max
9890010051 Bianco 5 Warm light 45° 10W
DR052W1A6A Bianco 230Vac 5 Warm light 15° 10W
DR052W1B6A Bianco 230Vac 5 Warm light 45° 10W
DR052W1N6A Bianco 230Vac 5 Warm light 30° 10W
DR052W2A6A Bianco 230Vac 5 Cold light 15° 10W
DR052W2B6A Bianco 230Vac 5 Cold light 45° 10W
DR052W2N6A Bianco 230Vac 5 Cold light 30° 10W
DR052W9A6A Bianco 230Vac 5 Natural light 15° 10W
DR052W9B6A Bianco 230Vac 5 Natural light 45° 10W
DR052W9N6A Bianco 230Vac 5 Natural light 30° 10W
DR05CUSTOM Bianco 24Vdc 15 Warm light 15° 10W
FL105W232C45 Bianco 230Vac 5 Warm light 45° 10W
