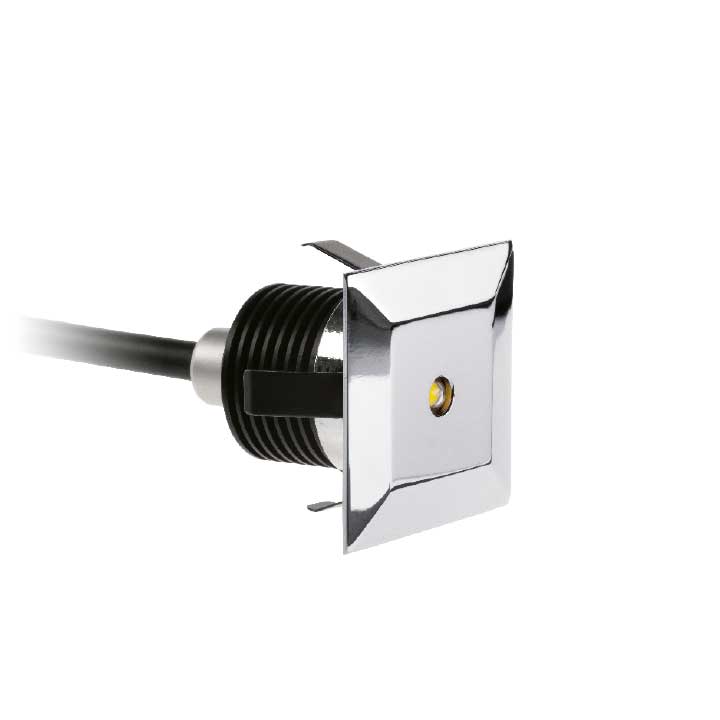

SC16S

Recessed device for indoor. Black anodized aluminum body, square aluminum front in different finishes. Without lens to have wide emission of light. Available in different white color of temperature or in RGB version. Mounting clip for fixing on plasterboard. By request, plastic recessed box is available. Compact size, ideal for installation on wall as signal on paths.



Downloads:


Code Finitura Alimentatore Input Numero Led_ led/m Colore Luce Gradi Lente Lumen Max - Lumen/m Potenza Max
9800414027 700mA Warm light 3W
9800414032 700mA Cold light 3W
9800414048 700mA Natural light 3W
SC16S3W1D2A Bianco 650mA 1 Warm light 120° 3W
SC16S3W1D2E Cromato 650mA 1 Warm light 120° 3W
SC16S3W1D2P 650mA 1 Warm light 120° 3W
SC16S3W2D2A Bianco 650mA 1 Cold light 120° 3W
SC16S3W2D2E Cromato 650mA 1 Cold light 120° 3W
SC16S3W2D2P 650mA 1 Cold light 120° 3W
SC16S3W7D1A Bianco 350mA 1 Equipped with RGB LED 120° 3W
SC16S3W7D1E Cromato 350mA 1 Equipped with RGB LED 120° 3W
SC16S3W7D1P 350mA 1 Equipped with RGB LED 120° 3W
SC16S3W9D2A Bianco 650mA 1 Natural light 120° 3W
SC16S3W9D2E Cromato 650mA 1 Natural light 120° 3W
SC16S3W9D2P 650mA 1 Natural light 120° 3W
